Double-screw extruder
General
The double-screw food extruder is for almost all kinds of snacks or food, fried and not fried, directly puffed, for human and for pet. It is applied to all the raw materials, such as corn, rice, wheat flour, oat, rye, bean, buckwheat etc.
Features
1. Direct transmission between motor and gear box, reducing energy consumption.
2. Feeding, main driving device, and rotary cutting device adopt inverter to adjust the speed with more powerful drive, stable running, and low consumption.
3. Screw is made of alloy steel with long life. Segmental assembled screw is applied to more kinds of materials and products.
4. Automatic lubrication system can lower down power consumption and prolong the life,
5. Double screw feed equal materials forcibly.
6. Hanging mould and knives seat and bearing knife adjusting system can adjust the knives exactly and swiftly.
Technical Parameter
|
Model |
Capacity |
Installed power |
Power consumption |
Motor power |
Speed mode |
Dimension |
Product |
|

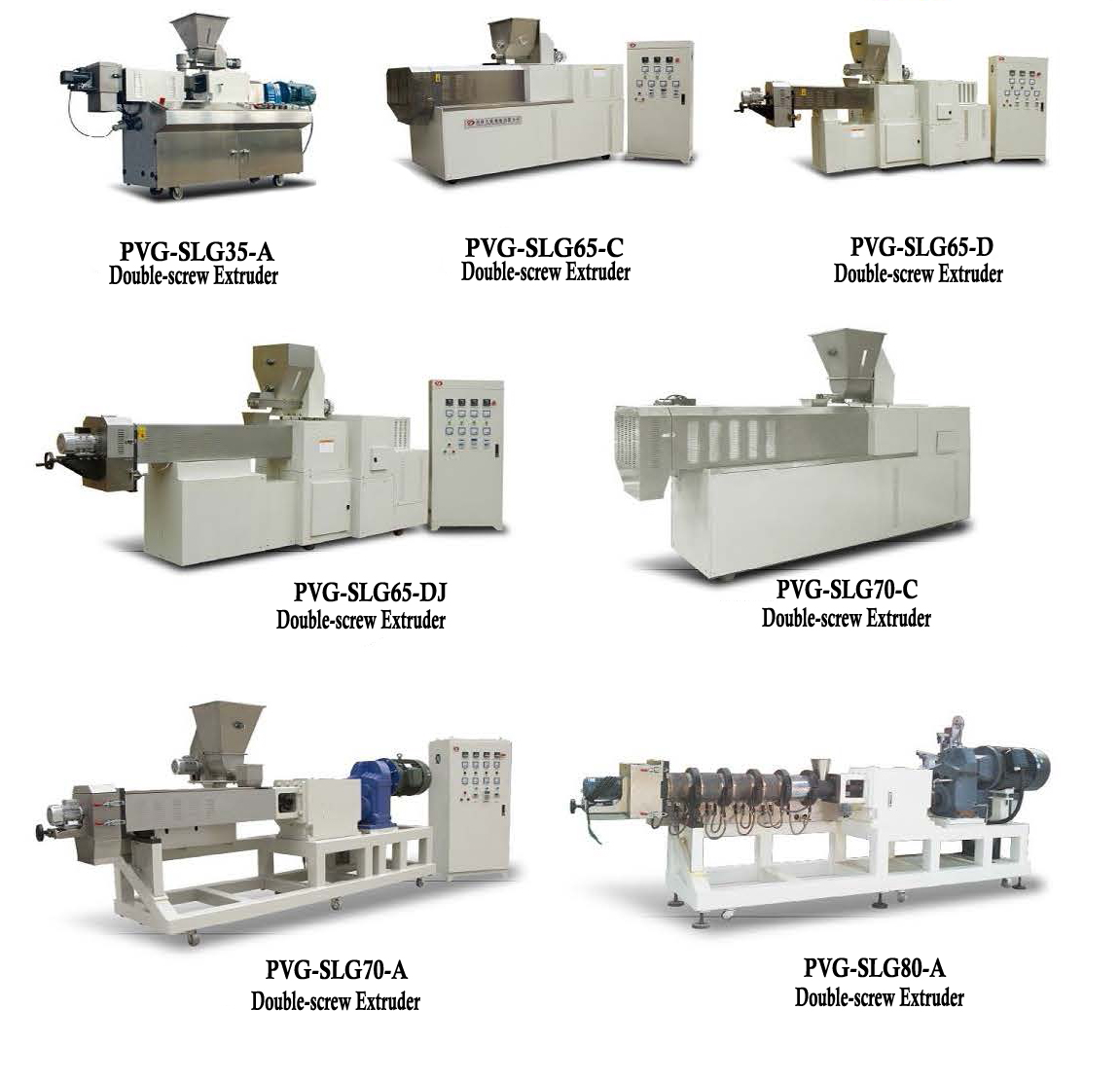

PVG-SLG 35-A |
20-50kg/h |
9.04kw |
6kw |
5.5kw |
Inverter |
2500*700*1600mm |
Directly puffed /test & teach |
|
PVG-SLG 65-C |
100-150kg/h |
30.45kw |
22kw |
22kw |
Inverter |
2600*950*2000mm |
Directly puffed |
|
PVG-SLG 65-D |
100-160kg/h |
34kw |
23kw |
22kw |
Inverter |
3460*1100*1960mm |
Directly puffed |
|
PVG-SLG 65-CJ |
100-150kg/h |
41.45kw |
29kw |
30kw |
Inverter |
3060*950*2050mm |
Pet food, Breakfast cereal |
|
PVG-SLG 65-DJ |
100-160kg/h |
44.04kw |
31kw |
30kw |
Inverter |
3900*1100*1960mm |
Pet food, Breakfast cereal |
|
PVG-SLG 70-C |
200-250kg/h |
64.45kw |
45kw |
45kw |
Inverter |
3320*960*2050mm |
Pet food, Breakfast cereal |
|
PVG-SLG 70-A |
200-300kg/h |
65kw |
45kw |
45kw |
Inverter |
4400*1300*2200mm |
Pet food, Breakfast cereal |
|

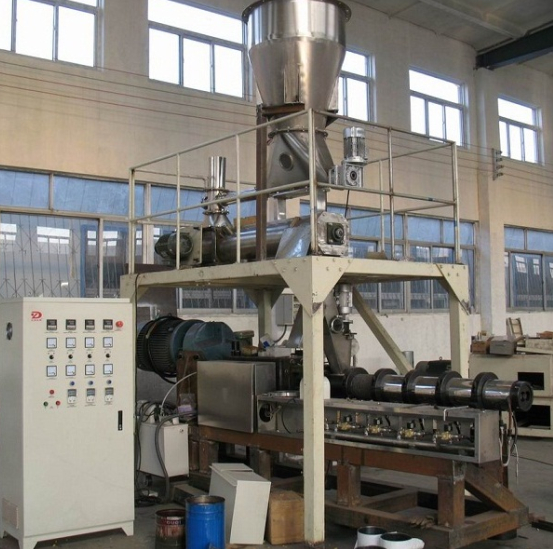

PVG-SLG 65-F |
250-400kg/h |
97kw |
67kw |
75kw |
Inverter |
4800*3000*4200mm |
Textured protein |
|
PVG-SLG 72-A |
300-400kg/h |
170kw |
93kw |
90kw |
Inverter |
6586*1860*3005mm |
Textured/ Fiber soya protein |
|
PVG-SLG 85-A |
350-450kg/h |
116.75kw |
90kw |
90kw |
Inverter |
5200*1300*2500mm |
Breakfast cereal, Textured soya protein, Pet food |
|
PVG-SLG 85-B |
400-800kg/h |
112kw |
72kw |
90kw |
Inverter |
6000*2200*4500mm |
Extrusion food |
