Dryer



General

Dryers for food snack can dry various food and snacks. The dryer drying has high heat efficiency, and hot air circulation makes better drying quality. The drying cavity is divided into single layer, 3 layers, 5 layers, 7 layers. All is stainless steel widened net belt. Advanced temperature control device can be set proper temperature for different materials, so the drying quality can be assured.

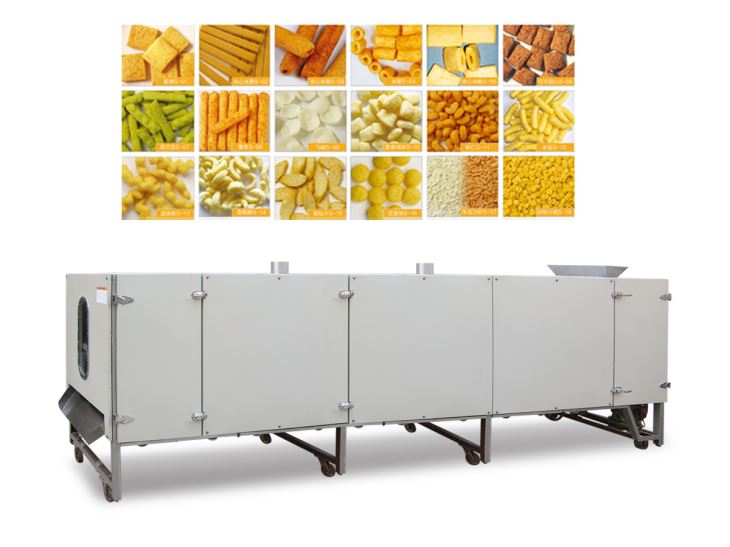

Technical Parameter of electricity dryer

Model	PVG/DKX 3 layers electric dryer
Capacity	100~150kg/h
Installed power	22kw
Heat power	21kw
Heat temperature	~140°C
Drying time	4~8min
Dimension	4800×1150×1750mm

Characteristics of electricity dryer

1. Heat with infrared ray heating tube, raise and lower down temperature quickly, small heat inertia and high heat efficiency.
2. Adjustable transit speed of net belt with accurate temperature control device.
3. Double-roller chain and chain drive make stable and smooth running.
4. Sliding board bottom of dryer for easy cleaning.
5. Suitable to dry non-fried extrusion snacks, nutritional powder, bread crumb, pet food, textured vegetarian protein, etc.

Characteristics of multi-layer diesel/gas Dryer

1.    High efficient diesel/gas burner can heat swiftly with low consumption ad high heat efficiency.
2.    Hot wind cycle device makes heat energy equal in the dyer.
3.    Adjustable transit speed of conveyer belt with accurate temperature control device.
4.    Double –roller chain and chain driver make stable and smoothing running.
5.    Suitable to dry non-fried extrusion snacks, nutritional powder, bread crumb, pet food, textured protein, etc

Technical Parameter

Model	Capacity	Installed power	Burner	Diesel consumption	Heat temperature	Drying time	Dimension
PVG/SHX 3-layer dryer	200~250kg/h	6.2kw	150000 kcal	7~10kg/h	-140OC	4~14min	6700x1500x2500mm

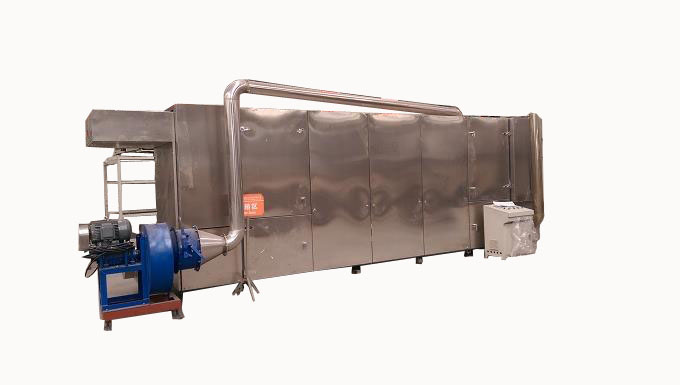

PVG/WHX 5-layer diesel/gas dryer	200~350kg/h	7kw	200000kcal	10~13kg/h	-140OC	7~25min	7200x2100x2600mm

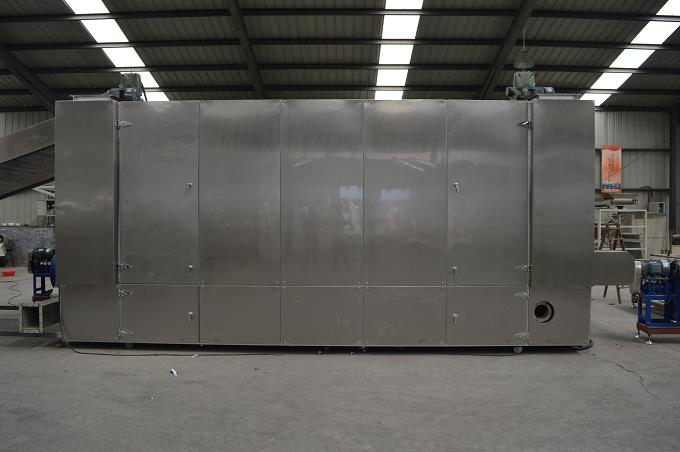

PVG/QHX 7 layer diesel/gas dryer	300~500kg/h	9kw	200000kcal	10~20kg/h	-140OC	7~25min	7200x1700x3400mm

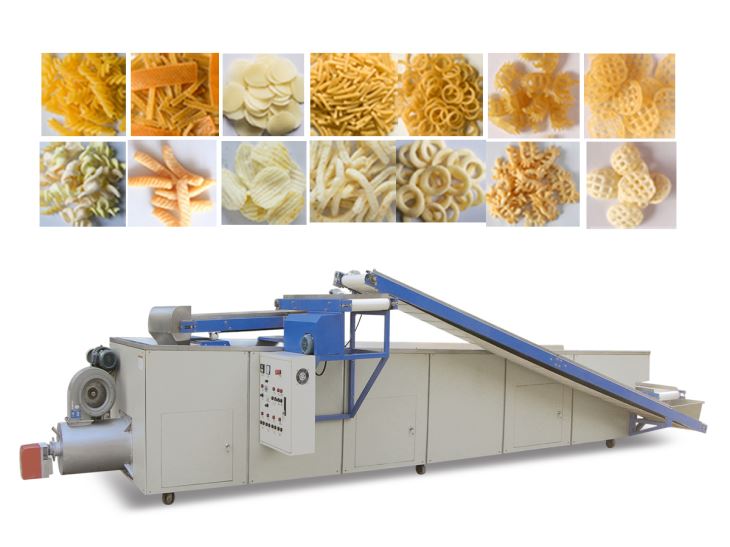

Characteristics of recycling dryer

1. High efficient diesel/gas burner can heat swiftly with low consumption and high heat efficiency.
2. With compact structure, large capacity, and small apace.
3. Equal distributing materials, recycling work and equal drying.
4. Adjustable transit speed and recycling times suiting for many different materials.

Technical Parameter

Model	Capacity	Installed power	Burner	Diesel consumption	Heat temperature	Drying time	Dimension
PVG/WFX-III Recycling dryer	200~400 kg/h	5.03kw	120000 kcal	5~7kg/h	70-110OC	Set respectively	7500x2400x2000mm
PVG/GHJ-W High temperature dryer	150-300kg /batch	-----	120000 kcal or electricity	-------	-300OC	3~9min	5000x1500x1600mm
