Flavoring machine

General

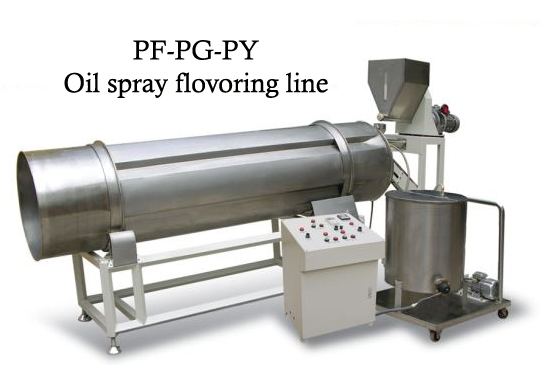

The Oil and powder spray flavoring line (PF-PG-PY) is composed of Elevator, Rotary Drum, Powder Sprayer, and Oil Sprayer. The Elevator transmits the dried extrusion snack to the rotary Drum, and at the same time, powder seasoning and edible oil are sprayed into it separately by the two sprayers. In the Drum the snacks are flavored equally. This whole line is centrally controlled by the control cabinet. The driving motors adopt frequency conversion speed governing system, and the heating system is equipped to advanced temperature control and display devices. The reasonable design, high automation, easy operation, small occupying space, and low consumption all make this process line your best choice.

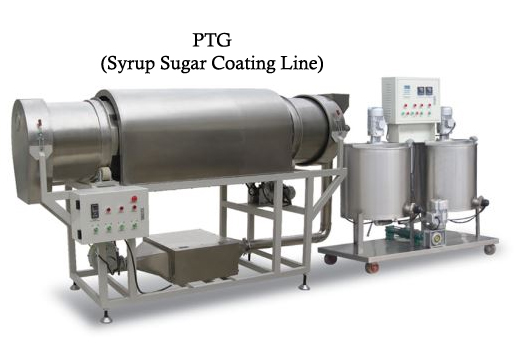

The Syrup sugar coating line (PTG) is composed of coating roller and sprayer. The dried expanded food is sent by elevator into the coating roller and rotated with it. At the same time, the sprayer sprays the syrup into it. With the rotating, the syrup is coated on the surface of the snacks evenly.

The machines are made of stainless steel, adopting inverter and steeples speed regulating system to change the motor speed. The heating system is equipped with advanced temperature control and display devices.
This process line is characterized by reasonable design, high automation, simple operation, small occupying space, and low consumption.

Technical Parameter

Model	PF-PG-PY	PG-PF	PTG (Syrup Sugar Coating Line)
Capacity	100-200kg/h	100-200kg/h	150-250kg/h
Driving power	1.86kw	1.67kw	-----
Heating power	2kw	-----	18kw
Dimension	4300×1800×1850mm	4300×800×1850mm	3000×2000×1850mm
Products	Non-fried extrusion food	Fried extrusion food	Pet food, Breakfast cereal
