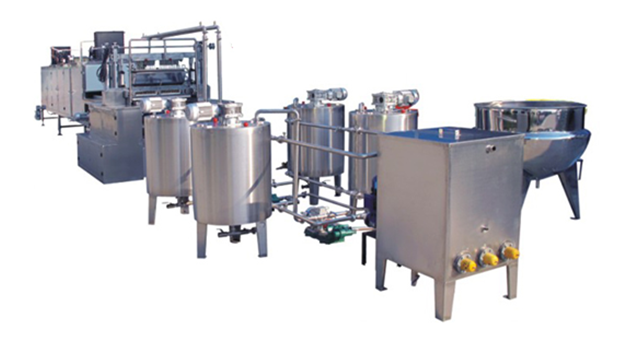

Jelly candy production line

General

This line can produce inflatable gelatin soft candy(cotton candy)toffee candy automatically, The whole line consists of sugar-melting cooker, convey pump, storage forming machine. Air-conditioning, rolling sugar machine and so on.

• The production capacity from 150kgs/h to 300kgs/hï¼›
• Sanitary constructionï¼›
• Available for producing "one color","two color" Jelly candies (QQ candies) ï¼›
• In -line injection dosing and pre-mixing techniques for the proportional addition of liquid of colors, flavors and acidsï¼›
• Available for making different kinds of shapes of candies based on changing of different mouldsï¼›
• Deposited hard candies can be produced on the same line by conveniently changing the moulds.

Technical Parameters

MODLE

PVG 150

PVG 300

PVG 450

PVG 600

CAPACITY

150kg.hr

300kg/hr

450kg/h

600kg/h

CANDY WEIGHT

2-8g

2-8g

2-8g

2-8g

DEPOSITING SPEED

20-25n/min

20-25n/min

55-65n/min

55-65n/min

WORKING CONDITION

Temp 20-25℃  Humidity55%

Temp 20-25℃  Humidity55%

Temp 20-25℃  Humidity55%

Temp 20-25℃  Humidity55%

TOTAL POWER

18kw/440V

27kw/440V

48 kw/440V

75 kw/440V

TOTAL LENGTH

17m

17m

18m

18m
