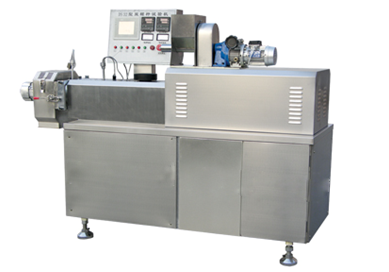

Lab twin screw extruder
Features:
Lab twin-screw extruder is special for universities, research institutes and large and medium-sized enterprises engaged in various extrusions, extruded maturation, and extruded variability study omnipotent models. It has gone through four generations of improvements to adapt to cereals; potato starch, protein, chemicals, plastics, rubber and other raw materials are vastly different for a variety of experiments. Powerful, easy to operate and simply of parameters adjustment, test data accurate, easy maintenance.
Technical Parameters:
|
1. |
Motor power |
5kw |
14. |
Control mode |
Collect control |
|
2. |
Motor speed |
Frequency control |
15. |
Range pressure |
0-30MPa |
|
3. |
Screw diameter |
30 |
16 |
Precision pressure |
1MPa |
|
4. |
Screw center distance |
26mm |
17. |
Test point |
3 |
|
5. |
Screw material |
38CrMoAl |
18 |
Lubricant mode |
Inner cyc |
|
6. |
Rotate speed range |
0-500rpm |
19. |
Feed rate |
0.18KW |
|
7. |
Screw form |
Bricks form |
20. |
Feed control |
Frequency control |
|
8. |
Pathway rate |
11.6/12.7/23 |
21. |
Cutter rate |
0.25KW |
|
9. |
Rotate speed range |
0-550epm |
22. |
Cutter control |
Frequency control |
|
10. |
Temperature control |
Electric heat and water cooler |
23. |
Cutter power |
0.25kw |
|
11. |
Test point |
4 |
24. |
Shape |
1.8x1.4(m) |
|
12. |
Temperature control |
Normal ~300 degree |
25. |
Output |
8-12kg/h |
|
13. |
Temperature |
-1degree---+1 degree |
