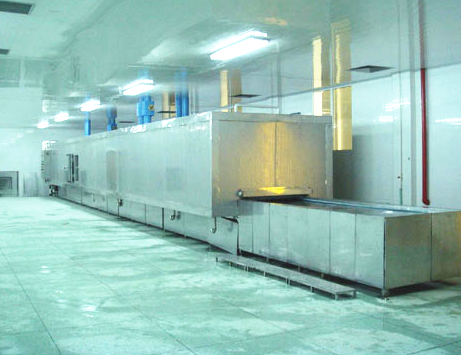

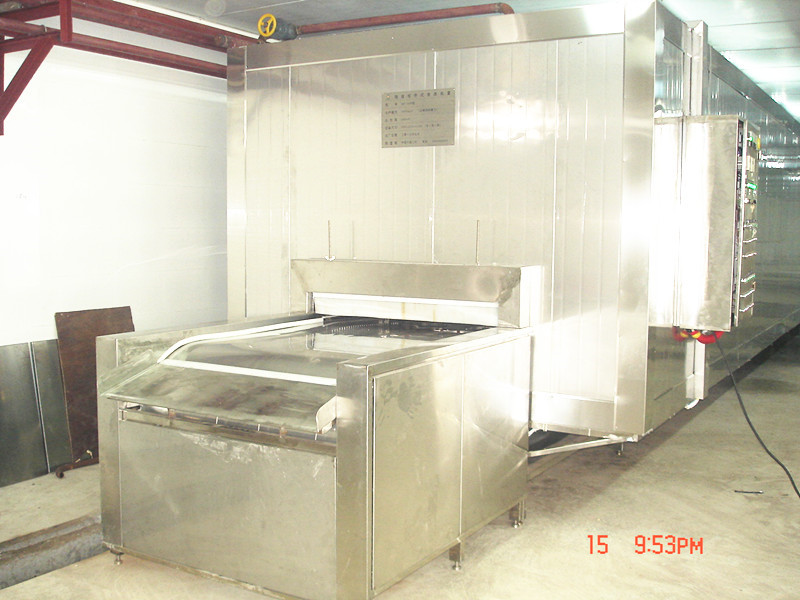

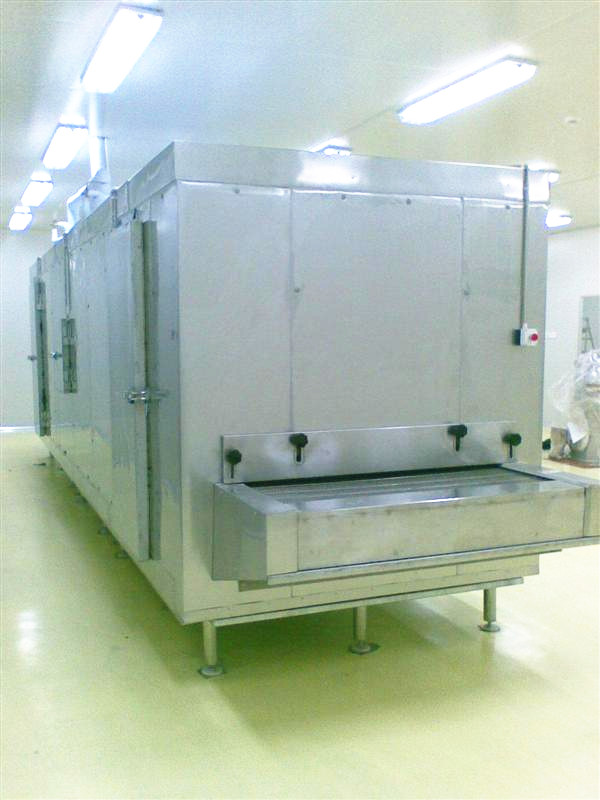

Tunnel freezer

General

This machine apply to bar, bulk, slice, particle food quick freeze extensively, and has been selected for use by a lot of domestic high grade food producers. Its new generation quick freeze device which provide new theory for the single food quick –freeze.

Tunnel freezers are mostly used for flour food freezing, fruits & vegetables freezing, meat freezing, seafood freezing and prepared food freezing .in quick-freezing strip, cubic or grain food, such as shrimp meat, shrimp, sliced fish, meat dumpling, divided meat, pig tongue, chicken, asparagus and yam. It saves energy and is convenient in cleaning and maintenance.

Features

1.  IQF food is quality. Frozen food isn't bonded, conforming to export standards of food hygiene.
2.  Short freezing time, adopted the good effect cross-ventilation, with the frozen time 3 to 60 mins.
3.  Matched with double speed electric motor, widen the use bound as well as saving the energy.
4. Air blower is divided into cross blast from right and left, mixed blast and top blast according to different frozen products which makes perfect freezing, quality and efficiency
5. The equipment is manufactured with the frequency conversion double level drivers system. Each of the driver system can work in gear when some malfunction with the other driver system or frequency conversion drivers system, the speed can be changed in certain range.
6. The air cooler complete manufactured with aluminum duct and aluminum sheath which improve the sanitation standard and the freezing efficiency.
7.  The periphery body heat preservation system is manufactured with polyamine double-surface stainless steel. With the traits of good heat insulation, artistic but unaffected outline.

Technical Parameters list:

Model	PVG-SSDIV-300	PVG-SSDIV-500	PVG-SSDIV-750	PVG-SSDIV-1000	PVG-SSDIV-1500
Capacity(kg/h)	300	500	750	1000	1500
Refrigeration capacity(kw/h)	70	130	155	185	256
Freezer size(m)	8*3.3*1.6	10*3.7*1.6	13*2.5*1.6	18*2.5*1.6	22*2.5*1.6
Dimension size(m)	10.3*3.3*2.2*	12.3*3.7*2.2	18*2.5*1.6	24*2.5*1.6	28*2.5*1.6
Installing power(kw)	12	15	18	22	32
Feed temperature(℃)	+20
Outlet temperature(℃)	-18
Inner circulation  temperature(℃)	-35±2
Frozen time(Min)	10-60
Refrigerant	R717 or R22

LLD Wave –Vibration and semi –Fluidization IQF

It is based on the SSD mesh belt tunnel IQF. The machine coalescent the structure of IQF, improved the wind speed of food surface and the pulse vibration device. With broad applicability, many freezing mode such as monomer, tray freezing, and dollop freezing, improved the freezing, quality and efficiency of food. It is new freezing device for aquatic food products and vegetable processing companies.



Model	PVG-LDD-500	PVG-LDD-750	PVG-LDD-1000	PVG-LDD-1500
Capacity(kg/h)	500	750	1000	1500
Refrigeration capacity(kw/h)	115	140	185	256
Freezer size(m)	9*3.3*2.0	11*3.7*2.0	14*3.7*2.0	17*4.3*2.0
Dimension size(m)	11.3*3.3*2.6	13.3*3.7*2.6	16.3*3.7*2.6	19.3*4.3*2.6
Installing power(kw)	14	18	25	37
Feed temperature(℃)	+15
Outlet temperature(℃)	-18
Inner circulation  temperature(℃)	-35±2
Frozen time(Min)	10-60
Refrigerant	R717 or R22
