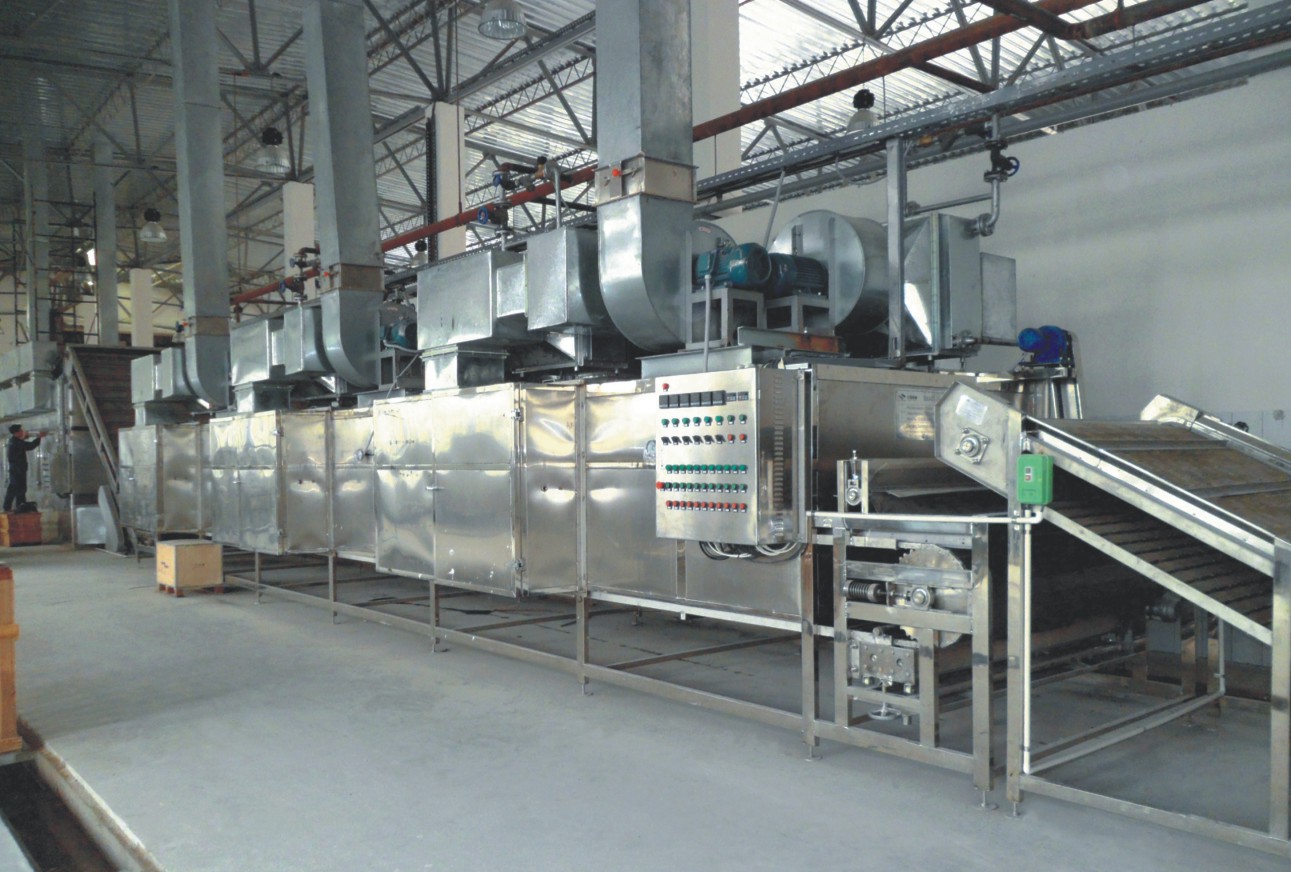

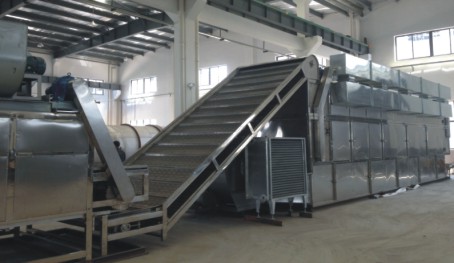

Vegetable belt dryer
General
The belt type drying machine is suitable for drying garlic, ginger, carrot, potato, bean, chestnut, almond, shelled shrimp and other granular materials.
The belt type drying machine has a box type structure. The box is provided with single layer or multiple layers of conveying belts. The belt type drying machine includes:
1. Single-Layer belt type with the commonly-used drying area specification of 20㎡, used in two sections or three sections. The temperature can be controlled in different sections and can be automatically adjusted according to the settings.
2. Multi-layer belt type (turning plate type).The conveying belt can be screen mesh or turning plate. The commonly-used drying area specifications are 25㎡ and 60㎡ the conveying speed and fan volume of the drying machine adopt frequency conversion steeples speed adjustment to meet drying requirements of different materials.
Technical parameter:
|
Model |
Overall dimension (mm) |
Power (kw) |
Capacity (t/h) |
Steam consumption (t/h, peak value≥0.4mpa) |
Valid width of belt (m) |
Valid length of belt (m) |
|
PVG-SBJ-2S-24 |
13700*3140*2990 |
53.22 |
1 (calculated as potato dice) |
1.8 |
2.0 |
12.0 |
|
PVG-SBJ-2M-60 |
14900*2940*3900 |
21.0 |
1 (calculated as potato dice) |
0.8 |
2.0 |
10.0 |
|
PVG-SBJ-2-32 |
18400*5500*3500 |
59.22 |
1.5 (calculated as wheat) |
4.0 |
2.0 |
16.0 |
|
PVG-SBJ-2-16 |
11900*5500*3500 |
34.50 |
0.5 (calculated as wheat) |
1.8 |
2.0 |
8.0 |
